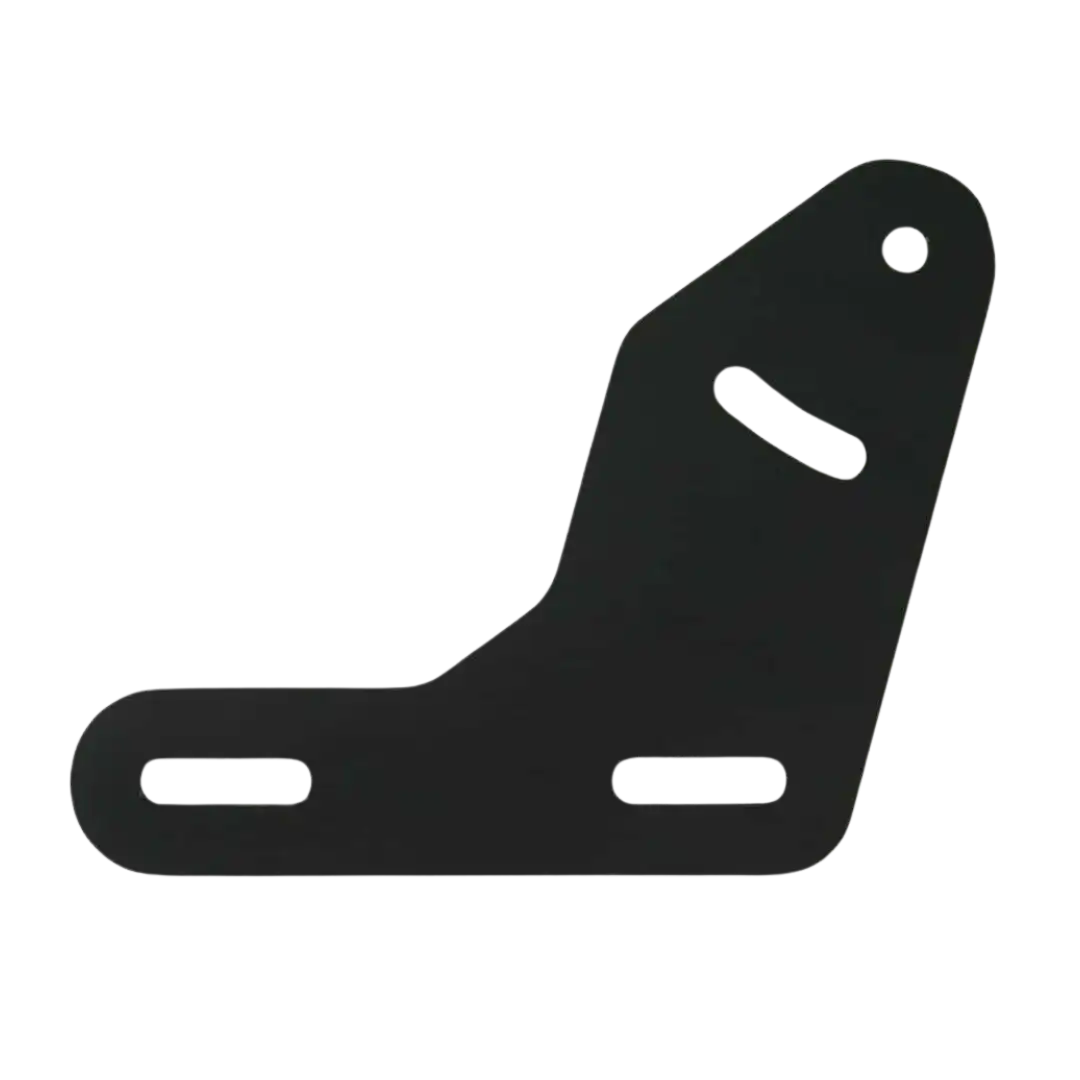

SimXPro® Triple-Quad connector bracket

The SimXPro Triple-Quad Connector Bracket is a structural mounting component for the SimXPro cockpit frame system, providing a triple or quad connection point for joining multiple frame extrusion profiles at a single junction. The bracket allows three or four aluminium extrusion profiles to be connected at 90-degree angles in a single fitting, enabling complex frame junction configurations without welding or bespoke fabrication. Manufactured from machined aluminium or steel, the bracket accepts the SimXPro frame standard extrusion profile dimensions and is secured using standard T-slot nuts and bolts. The Triple-Quad Connector Bracket is a structural component used during cockpit frame assembly or expansion, particularly in configurations where standard two-way corner brackets are insufficient for the required junction geometry. All fasteners are included with the bracket.
